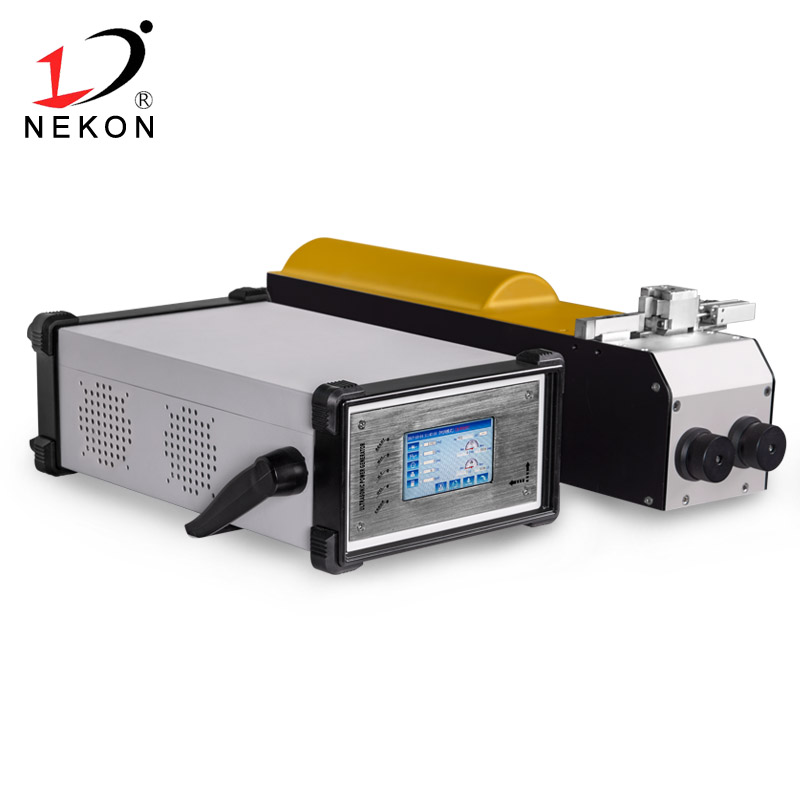

NK-XS001 Ultrasonic Wire Harneszs Welding Machine

NK-XS001 Ultrasonic Wire Harneszs Welding Machine

Product Introduction:

1. Adopt American ultrasonic technology, micro-processing control, automatic frequency tuning, while detecting current, phase frequency.

2. Time is controlled by time relay, which is easy to adjust and more intuitive, accurate.

3. The main original part is imported, Germany imported transducer, which energy conversion efficiency is high

4. The circuit has frequency deviation, excessive current and double automatic protection device to guarantee the stability of the equipment

5. The low cost can be used to replace welding nozzle, the welding nozzle is extremely hard, greatly reduce the wear of the welding nozzle, the welding head has many welding surfaces can be installed quickly and the cost is minimal.

6. The installation, debugging and operation of the equipment are simplified.


Product Feature:

1. High melting strength.

2. Close to cold processing, workpiece not annealing, no trace of oxidation.

3. After welding, the conductivity is good, the resistance coefficient is very low or near zero.

4. Low requirement for welding metal surface, oxidation or plating can be soldered.

5. Welding time is short, no need any flux, gas, solder.

6. Welding without spark, which is environmental safety.

DG SOUTH NEKON CO., LTD was founded in 1997, located in the beautiful Shipai Town in Dongguan City, Guangdong Province. South Nekon is a high technical private enterprise owing independent import-export operation rights. Since the establishment, the company has been devoted to optimization and integration of developing, producing, selling, and applicating of technology of ultrasonic machinery (Ultrasonic rhinestone fixing machine,face mask making machine, ultrasonic ribbon cutting machine, ultrasonic lace sewing machine, ultrasonic plastic welding machines, high frequency fusing machine). more than 10 years of experience in automation technology,South Nekon can provide full automation non-standard fabric sewing and cutting equipment according to the specail request. The company established its own brand “nekon”, and the registered trademark is "nekon", we have more than 200 workers(more than 80 technicians and managers with college education). And the head company has an area of more than 10,000 ㎡with branch company around the main cities of China such as Wenzhou, Kunshan, Ningbo, Fujian, Zhongshan, Guangzhou, Foshan etc.

Parameter:

Model No.: NK-XS001

Work Model: Pneumatic

Size490*460*450mm

WeightAPPX 55KG

Power2000W

Power Supply220V/50HZ

Frequency: 20KHZ

Air Pressure: 0.2-0.7Mpa

Working Stroke: 50mm


The above parameters and configuration is for reference only, specific configuration by mutual agreement shall prevail
..................................................................................................................................................................
